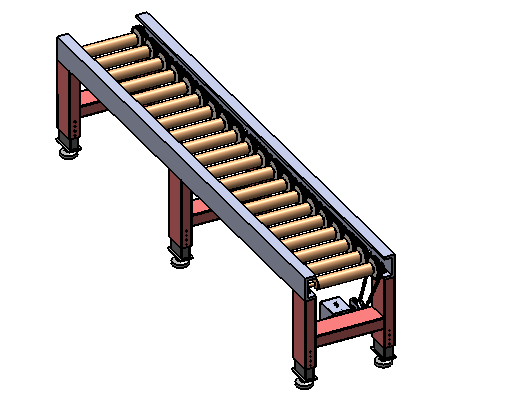

Chain-Roller Conveyor

This project is a chain‑roller conveyor designed to transport 20 boxes, each weighing 50 kg, over a distance of 6 meters.

The mechanical design includes roller sizing, shaft selection, chain drive specification, and motor sizing to handle the total load and required throughput while maintaining safety and reliability.

CAD modeling and basic calculations were used to verify torque requirements, bearing loads, and deflections.

The full design documentation is available in the linked document from the main Projects page.
